ARJO PRIOMA MEDICAL BED 600 - 5 Function
The Prioma Medical Bed 600 is the premium bed of the range. It has inbuilt nurse and patient controls in the full length split side rails and 125mm single central locking castors as standard.

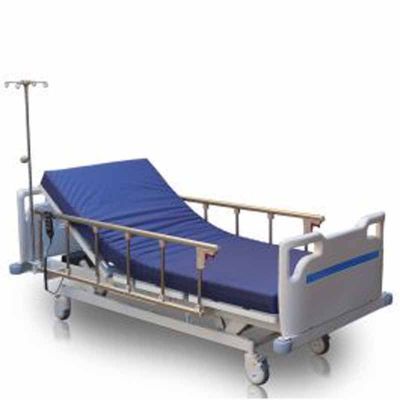

Ease of use, functionality and serviceability are key features across the entire range and with a selection of options available, the Prioma range of medical beds provide flexibility to adapt to the varying needs of your healthcare environment. Model pictured with ¾ length split side rails and twin central locking castors.
A range of optional features and accessories are available.
Standard Specifications:
•Safe Working Load (SWL) 250 Kg
•Tente 125mm single central locking castors
•Linak actuators
•ABS removable deck panels
•Full length split side rails
•Embedded controls for nurse and patient
•Retracting backrest
•Manual CPR backrest quick release
•Foot/calf elevation – manually operated
•Urine bag hooks and strap rail - both sides of bed
•Four accessory sockets
Basic Dimensions | |
---|---|
Overall length | 2150 mm |
Overall length base extension extended | 2435 mm |
Linen rack extension | 300 mm |
Overall width | 1000 (+/- 5mm) mm |
In bed dimensions | inside panel to inside panel, inside mattress retainer to mattress retainer 2030 mm (l) x 860 mm (w) |
Deck height range | Tente 125mm single central locking castors 380 mm to 835 mm (+/- 5mm) |
Trendelenburg and reverse Trendelenburg tilt - electronic | 0 to 14 degrees |
Backrest angle adjustment - electronic | 0 to 70 degrees |
Knee break angle adjustment - electronic | 0 to 35 degrees |
Product Weight (approximate) | |
Includes full length drop down ABS side rails fitted | 146 kg |
Safe Working Load (SWL) | 250 kg |
Maximum patient weight | 185 kg |
Electrical Data | |
Power in | switch mode operating voltage range 100V to 240V - 50/60Hz |
Duty rating | intermittent 10%, max 2 min / 18 min |
Electric Shock Protection | Class 1 Type B |
Liquid ingress protection | IP54 |
Internally powered equipment - battery backup only | battery backup only - 2x 12V series connected batteries, sealed chargeable lead/Acid Gel 1.2 amp hours |
